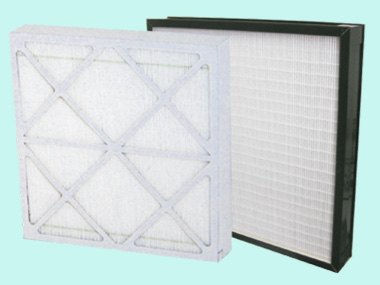

Mini-Pleat ASHRAE Filter

Capacity:

     ※ Media:Wet-laid glass fiber ,synthetic fiber
     ※ Frame:Paper, aluminum , galvanized,Plastic,Extruded aluminum
     ※ Lower Pressure drop
     ※ Lightweight easy-to-handle
     ※ Low resistance to airflow and resistance to moisture in high humidity applications
     ※ Saves valuable air hander component and inventory space
     ※ The filter shall be approved by UL Classified
     ※ Efficiency:F6(EN779),60-80% ASHRAE 52/76
                            F7(EN779),80-90% ASHRAE 52/76
                            F8(EN779),90-95% ASHRAE 52/76
     ※ Recommended final Pressure drop:400Pa

Operating conditions:

      ※ Temperature:≤70℃
      ※ Humidity:≤100%RH

Applications:

      ※ Main filters for commercial & industrial ventilation system
      ※ High relative humidity vantilation systems
      ※ Variable air Volume(VAV)ventilation systems
      ※ Ventilation systems with limited industallation space
