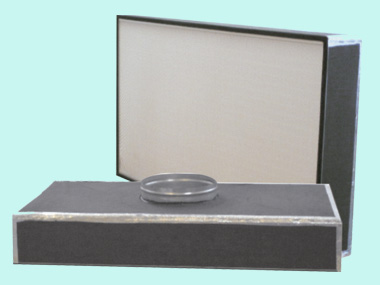

Disposable HEPA Filter

Capacity:

      ※ Low initial resistance with high efficiency at rated volume
      ※ Easy installation and guaranteed sealing performance
      ※ Galvanized steel mounting hardware for life long integrity.
      ※ Available with 10”,12” or 14”ducted collar connections. The collars have
           an integral raised ridge to aid in securing flexible duct connection. Seismic tables
           are standard.
       ※ Media:Wet-laid glass fiber
       ※ Frame:Extruded aluminum
       ※ Insulation:PE foam
       ※ Efficiency:H11(EN1822),≥95% @ MPPS  ≥99% @ 0.3um
                              H13(EN1822),≥99.95% @ MPPS  ≥99.99% @ 0.3um
                               H14(EN1822),≥99.995% @ MPPS  ≥99.999% @ 0.3um
       ※ Leakage testing by unit before leaving factory and provide testing report
       ※ The filter shall be approved by underwriter′laboratories as Class-2
       ※  Recommended final Pressure drop:600Pa

Operating conditions:

     ※ Temperature:≤70℃
     ※ Humidity:≤100%RH

Applications:

     ※ HEPA filters are used in hospitals,electronics and semiconductor manufacturing,
           clean rooms,clean booths,atomic energy research centers,etc
