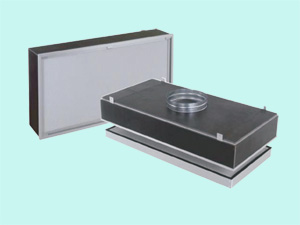

Replaceable ULPA Filter

Capacity:

      ※ Room side access for servicing and testing of filter only the filter is replaced not the
           entire assembly.
      ※ No tools needed to change filters
      ※ Replacement is fast and clean minimizing process down time.
      ※ Seal technology eliminating air bypass between the filter and the housing.
      ※ A light-weight low profile design that allows installation in a limited space.
      ※ A chamfered receptacle along the room side opening that forms a flush, continuous
           mating  surface that is free of gaps and architecturally pleasing.
      ※ Galvanized steel mounting hardware for life long integrity.
      ※ Available with 10”,12” or 14”ducted collar connections. The collars have an
           integral raised ridge to aid in ecuring flexible duct connection. Seismic tables are
           standard.
      ※ Media:Wet-laid micro glass fiber
      ※ Frame:Extruded aluminum
      ※ Insulation:PE foam
      ※ Efficiency:U15(EN1822),≥99.9995% @ MPPS  ≥99.9997% @ 0.12um
                             U16(EN1822),≥99.99995% @ MPPS  ≥99.99997% @ 0.12um
      ※ The filter shall be approved by underwriter′laboratories as Class-2
      ※ Leakage testing by unit before leaving factory and provide testing re

Operating conditions:

      ※ Temperature:≤70℃
      ※ Humidity:≤100%RH

Applications:

      ※ HEPA filters are used extensively for terminal filtration in areas and industries
           requiring extremely high level levels of cleanliness, e.g., electronics, semiconductor,
           precision machinery, pharmaceuticals. hospitals, food processing, etc.
