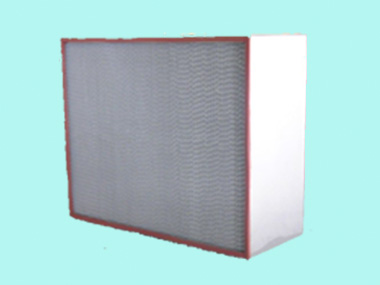

HT Separator HEPA Filter

Capacity:

      ※ Media:Wet-laid glass fiber
      ※ Frame:Stainless steel sheet (SUS201/SUS430/SUS304)
      ※ Separator:Aluminum foil
      ※ Sealant:High temperature silicone caulk
      ※ Gasket:High temperature silicone sponge
      ※ Low initial resistance with high efficiency at rated volume
      ※ Easy installation and guaranteed sealing performance
      ※ Leakage testing by unit before leaving factory and provide testing report
      ※ Efficiency:H11(EN1822),≥95% @ MPPS  ≥99% @ 0.3um
                             H13(EN1822),≥99.95% @ MPPS  ≥99.99% @ 0.3um
                             H14(EN1822),≥99.995% @ MPPS  ≥99.999% @ 0.3um
      ※ Recommended final Pressure drop:600Pa

Operating conditions:

      ※ Continuous Temp: 250℃(480℉)/300℃(570℉)

Applications:

      ※ High temperature paint spray line
      ※ High clean baking booth
      ※ High purified baking box
      ※ Food baking booth or room
      ※ Use with high temperature equipments to kill the germ or virus, such as
           pharmaceutical factory.
      ※ Ventilation system with high fire resistant requirement and high temperature
           operating environment
